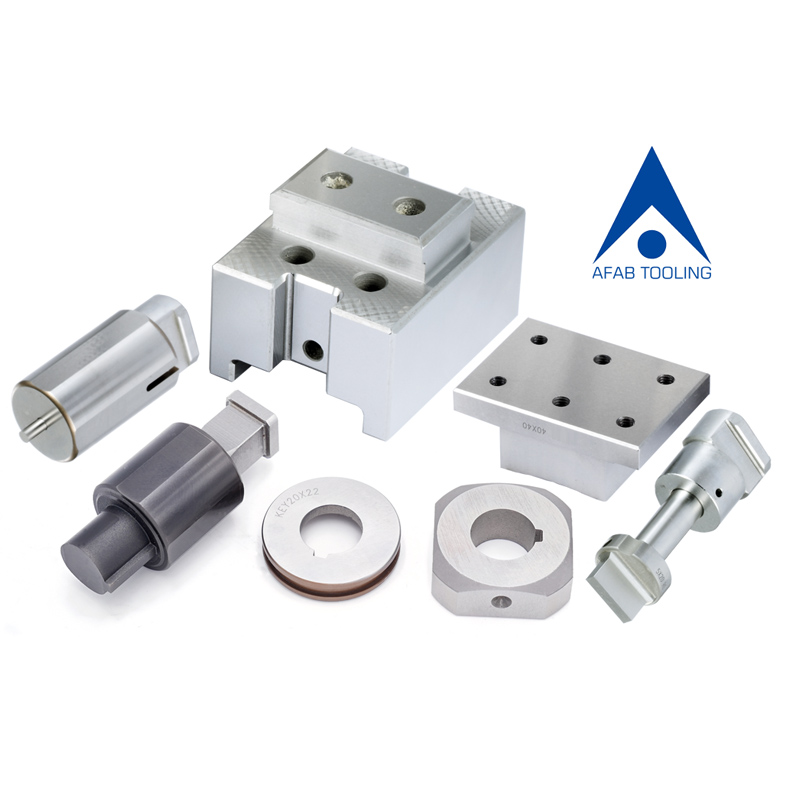

The Salvagnini punching machines are workstations that punch, form and cut parts. With tools always available and
integrated separating devices, they are not simple punching machines, but 4.0 workstations.
The multi-press head has a die-structure that houses several tools. Each tool is actuated individually and is always

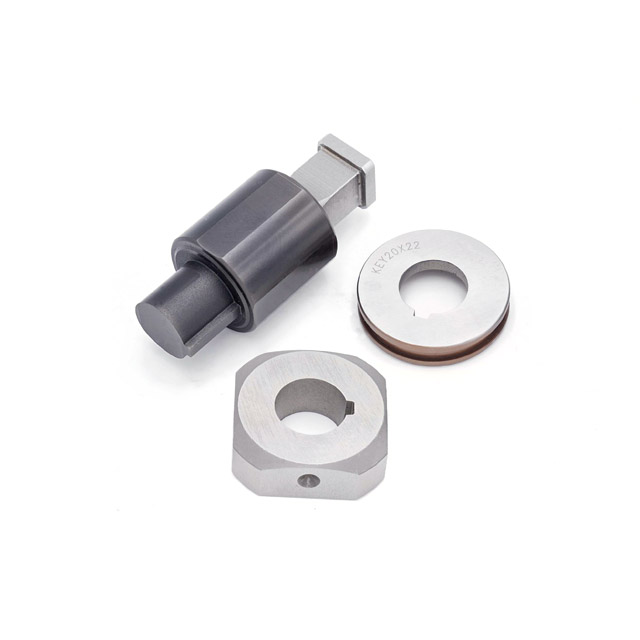

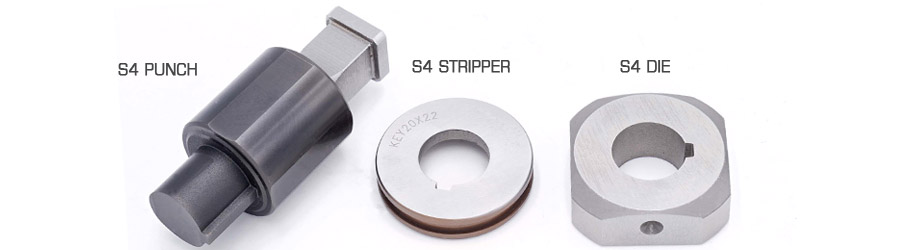

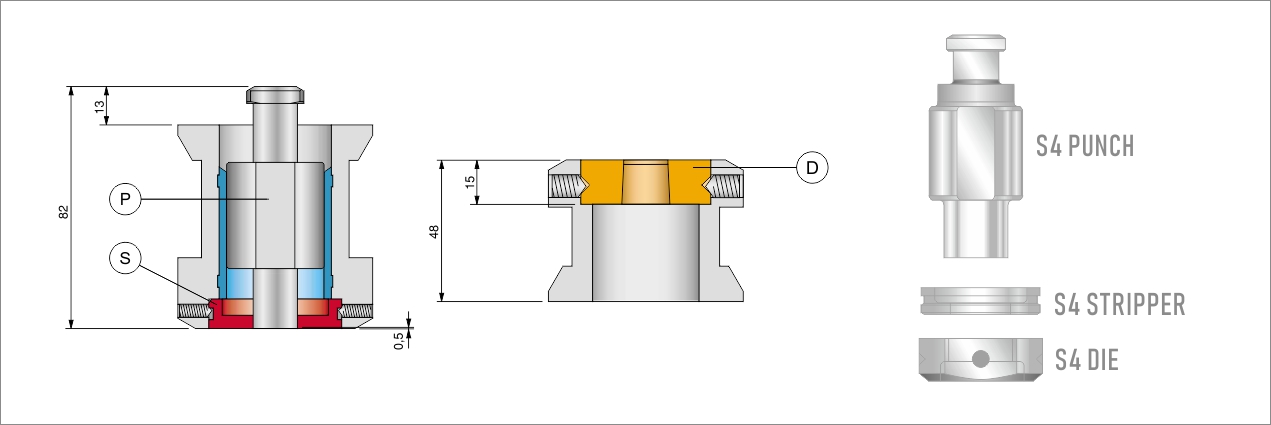

The S4 system features
*Max size:33mm, Max tonnage: 70KN
*Material thickness to punch: 0.5--3.5mm
*Punch Length: 81.5mm, Die Length:15mm
*Punch Grinding life: 2mm
*Die Grinding life:1.2mm

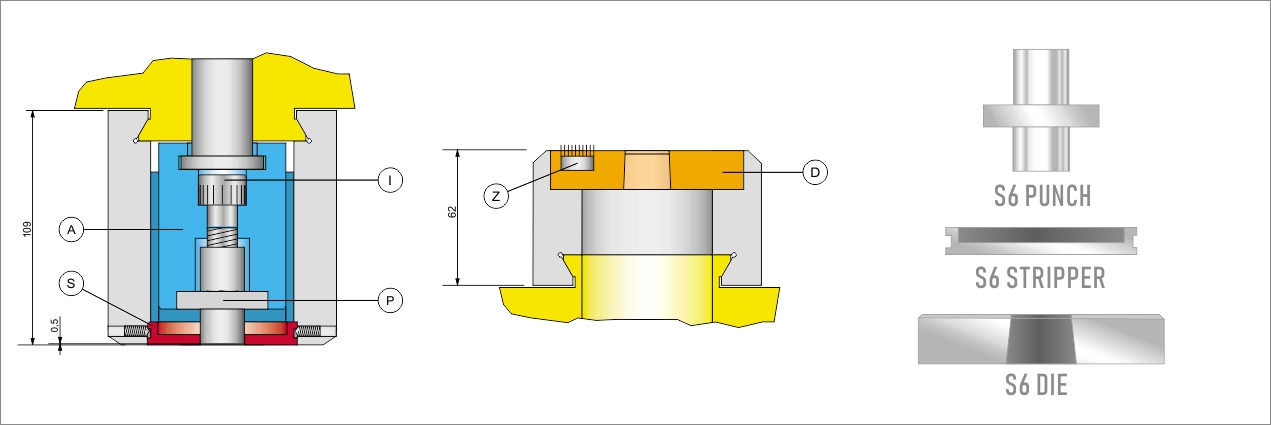

The S6 system features, Only supply Punch,Die,Stripper
*Max size:60mm, Max tonnage: 120KN
*Material thickness to punch: 0.5--3.5mm
*Punch Length: 44mm, Die Length:15mm
*Punch Grinding life: 2mm
*Die Grinding life:1.2mm

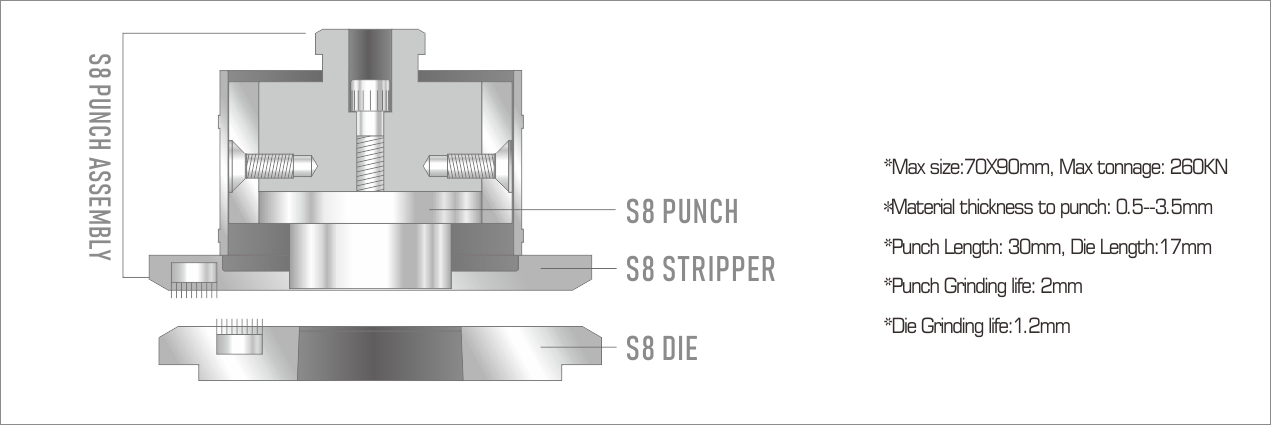

The S8 system features
*Max size:70X90mm, Max tonnage: 260KN
*Material thickness to punch: 0.5--3.5mm
*Punch Length: 30mm, Die Length:17mm
*Punch Grinding life: 2mm
*Die Grinding life:1.2mm

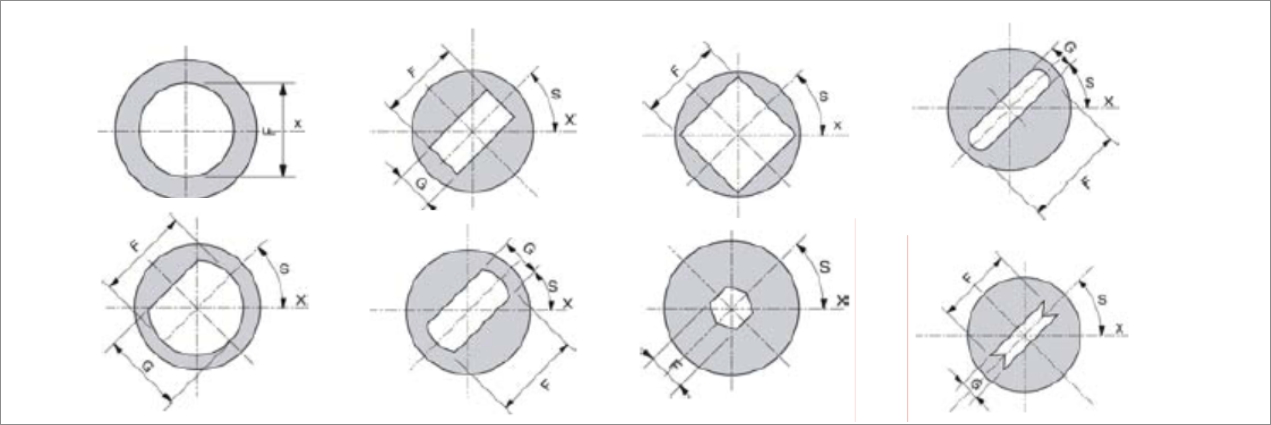

Salvagnini Tool Shape and Direction
